ecoheat Sensus - Connection between thermostat and receiver


1.Open the cover.
2.Insert the two AAA batteries supplied and close the cover.
3.
Ensure that the receiver is in radio pairing mode. To do this, press button A on the receiver for 3 seconds:

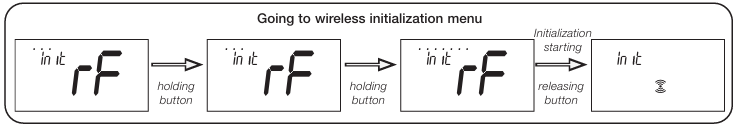

4.Press the button on the back of the thermostat for 5 seconds to access the radio pairing menu:
5.


Another method from the parameter menu: How to access the radio coupling menu:


➤ Go to the ‘Installer parameters menu’ and select parameter #48 ‘rF’ (see sections ‘Installer parameters menu’ and ‘Installer parameters selection and setting’).



➤  Press the rotary button. The following screen is displayed:



When the thermostat is in the radio pairing phase, it transmits bidirectional pairing frames (pairing signals) without interruption. There are two cases during radio pairing:


➤ Pairing with the receiver : After successful pairing, the thermostat automatically exits pairing mode.

➤ Pairing not completed or unsuccessful (or inactivity of the buttons): The digital thermostat remains in pairing mode for 10 seconds and then stops automatically. To reset all radio parameters (ID and type of receiver), the only method is to clear the thermostat's memory. The reset is done in the ‘Installer parameters menu’ with parameter #52 Clr EEP (see section ‘Installer parameters description’).


IMPORTANT NOTES :


✔After pairing, almost all parameters of the receiver are reset to the factory settings ;

✔ If no pairing has been performed, the thermostat does not send a radio frame (radio signal);

✔ The installer can monitor the signal performance using the ‘Installer parameters’ menu (see section ‘Installer parameter description’).
