Question
Unfortunately, the solenoid valve has fallen out. How do I reinstall it?
Answer

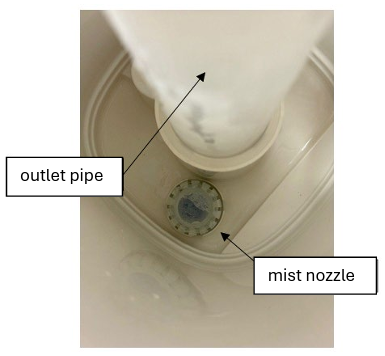

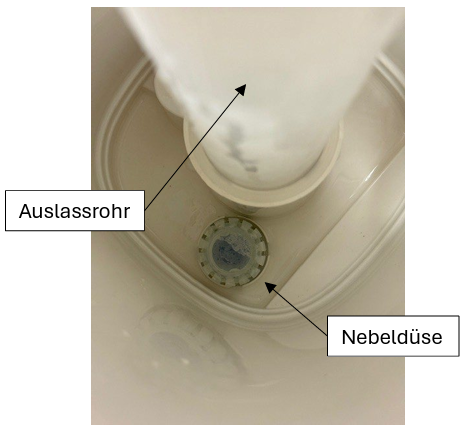

To ensure the solenoid valve can be installed correctly, sufficient space must first be created. First remove the mist nozzle; it is only pushed on and can simply be pulled off. Afterwards, the outlet pipe must be removed to allow free access to the installation area.

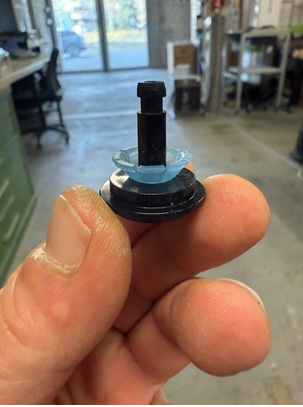

To assemble the solenoid valve, the blue membrane must be pushed over the black plug with the large opening facing upwards. The black plug is inserted from below into the white, round plastic support.
To install the solenoid valve, the fully pre-assembled valve must be inserted from below into the designated opening on the water tank.
Important! All 3 springs must be present, otherwise the valve will not work reliably.
The end of the black plug must be visibly protruding inside the water tank.
To complete the assembly, the larger blue membrane must be pushed onto the protruding end of the black plug. The mist nozzle and the outlet pipe can now be reinstalled.
Do you have any other questions we haven’t been able to answer yet? No problem — our support team will be glad to help you: contact ecofort.
